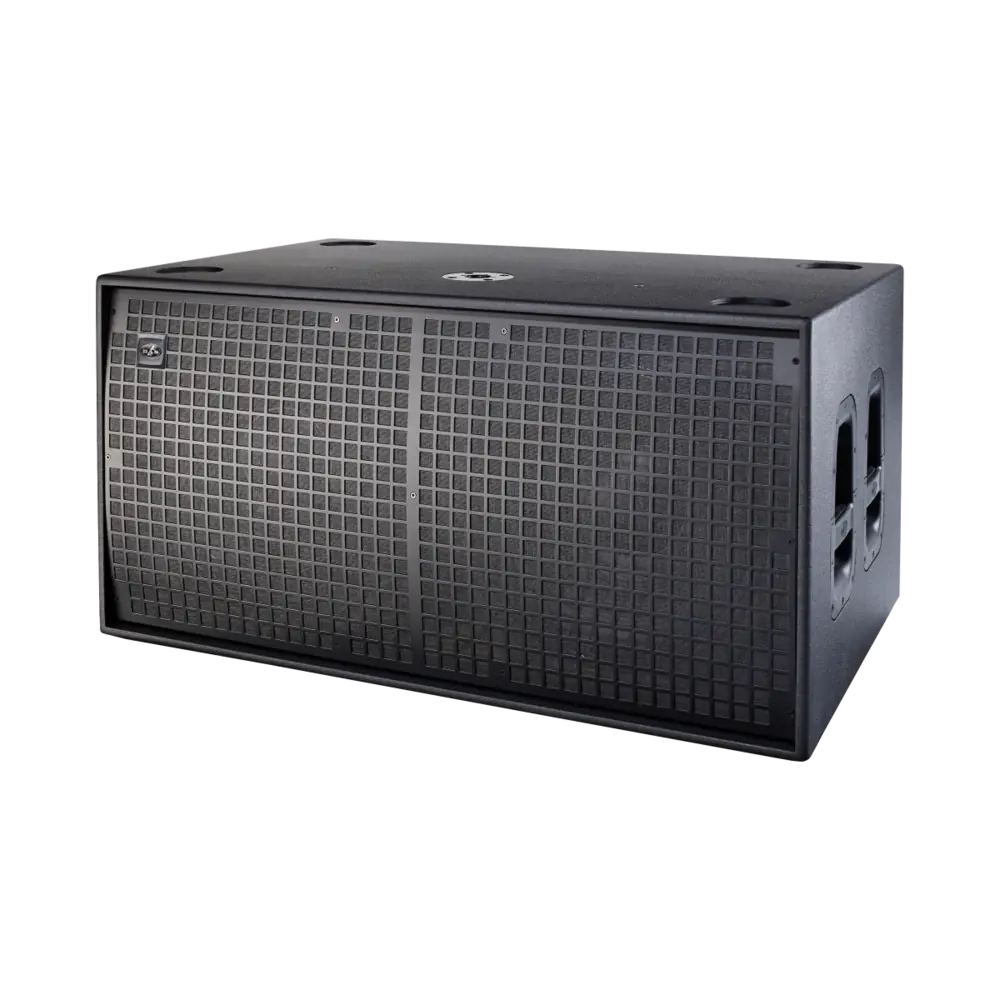

DAS Audio EVENT Subwoofer
EVENT-218A
EVENT-218A es un subwoofer de la serie EVENT de DAS Audio. Características verificadas del fabricante: 32 Hz – 125 Hz · 3600 W. Consulta la tabla técnica completa y descarga el manual oficial más abajo.
Descargar manual oficial (PDF · 11551 KB)Especificaciones técnicas · datos verificados del fabricante
| Frequency Range (-10 dB) | 32 Hz – 125 Hz |
|---|---|
| Maximum Linear SPL 1 | 136 dB |
| Maximum SPL 2 | 140dB |
| Nominal Amplifier Power (continuous) | 1800 W |
| Nominal Amplifier Power (peak) | 3600 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Input Connector | powerCon NAC3FCA |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 3.0 A/6.0 A |
| Certification Number | NRTL US&CA SGSNA/19/SUW/00110 |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 550 x 1.065 x 675 mm 21,7 x 41,9 x 26,6 in |
| Net Weight | 68,5 kg ( 151,0 lb ) |
| LF Driver | 18LX |
| Carton Dimensions ( H x W x D ) | 1.180 x 730 x 610 mm 46,5 x 28,7 x 24,0 in |
| Shipping Weight | 73,5 kg ( 162,0 lb ) |
Documentación adicional
- Datasheet / brochure — Event_ESP.pdf ↗
- Manual de montaje — RM_EV1_01_ES.pdf ↗
- Datasheet / brochure — Event_ENG.pdf ↗
Documentos alojados por el fabricante (DAS Audio).
